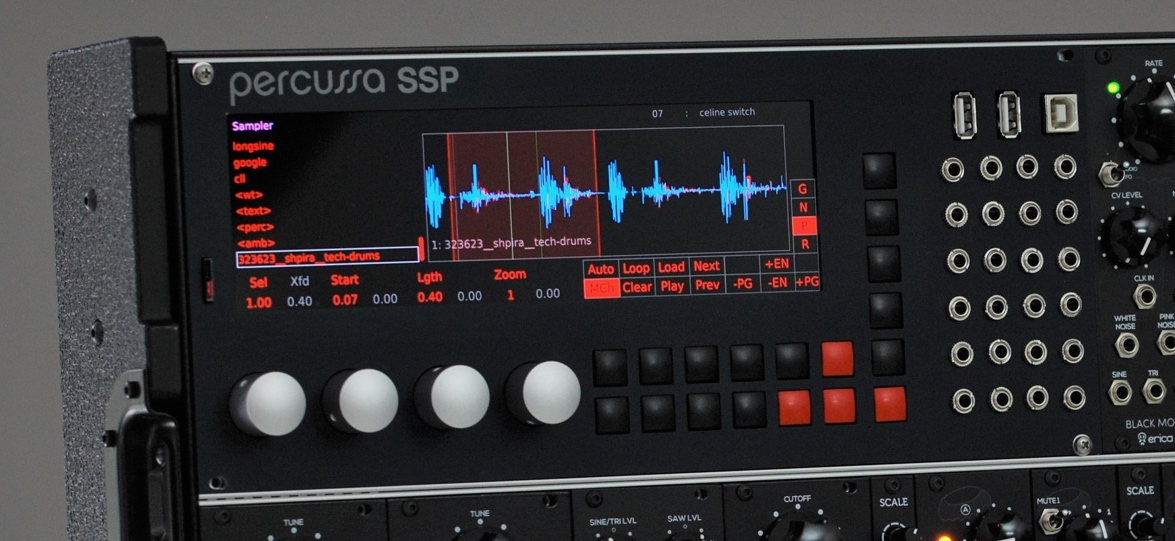

Percussa Super Signal Processor (SSP) Eurorack Module

What modules are available to build patches on the SSP?

Wavetable Oscillator with true 3D morphing (XYZ) and cloud features
Sampler with Layering features
LFO with multiple waveforms (sine, saw, square, triangle)
Variable Frequency Noise
DC generator
Envelope Generator with Exponential A and DR
Waveshaper
Comb Filter
State Variable Filter
Step Sequencer
Granular processor with live input
Sampler module (with separate parameters and modulation inputs for the 8 slots )
Simple delay
Bit crusher
Physical modeling membrane
Arpeggiator
Envelope Follower
Bus module
Develop/load your own VST plugins (compiled for Linux/Arm)
Switcher Module
Reverb and Delay
Macro Module
...

New modules are constantly added as we release software updates. See SSP forum software updates.

Latest SSP Videos

View this post on Instagram

a01 - Modular System + CV Tools/M4L/Ableton Live (Novation Launch Control XL connected to Percussa SSP) Full video link in bio 🎧 - #modularsynth #synth #eurorack #percussa #ssp #percussassp #monome #teletype #almbusycircuits #pamelasnewworkout #befaco #ableton #maxforlive #m4l #cvtools #octomo #octomodularsynth #minibang #novation #launchcontrolxl #모듈러신스 #모듈러 #유로랙 #옥토모 #미니뱅 #モジュラーシンセ #シンセサイザー #motoko #모토코

A post shared by motoko (@motoko______) on Mar 27, 2020 at 5:38am PDT

View this post on Instagram

atmosphere - Modular System + CV Tools/M4L Full video link in bio 🎧 - #modularsynth #synth #eurorack #percussa #ssp #percussassp #monome #teletype #almbusycircuits #pamelasnewworkout #befaco #ableton #maxforlive #m4l #cvtools #octomo #octomodularsynth #minibang #모듈러신스 #모듈러 #유로랙 #옥토모 #미니뱅 #モジュラーシンセ #シンセサイザー #motoko

A post shared by motoko (@motoko______) on Mar 21, 2020 at 8:22pm PDT

View this post on Instagram

🎧 for all the vibes. Same patch as the last video except I’ve added a sampler module, midi and an input module to the SSP so now we’ve got drums, bass, percussion, modulation and some lofi guitar notes to create a downtempo, chilly patch to go along with this rainy Virginia Sunday...

A post shared by Without Form (@cntrlr_) on Mar 15, 2020 at 9:41am PDT

View this post on Instagram

You’ll need some 🎧 for this. I’m experimenting with the Erica Synths Black Stereo Delay into their Black Spring Reverb. I loaded a bunch of voice memos from my iPhone onto the SSP’s granular engine which is probably one of the best on the market. I’m just toying around with the hold, add, reverse functions of the delay and adjusting the grain sizes. I added just a little ping pong delay from my mixer at the end of the signal chain.

A post shared by Without Form (@cntrlr_) on Mar 15, 2020 at 8:40am PDT

View this post on Instagram

Testing out some tweaks I made to this 303 style bass patch. Originally I used just a saw wave which gave me a lot of squelchy resonance I liked but I decided to add a square wave for a little more low end. I may connect the filter to the envelope in the next revision. The synth was built in the SSP and it’s also handling the drum/percussion samples. The squid is sequencing it all.

A post shared by Without Form (@cntrlr_) on Mar 13, 2020 at 8:15pm PDT

View this post on Instagram

🎧 for the mo betta...More practice, more patches. Here’s another sketch in the books. The SSP is handling the drum and percussion samples, wavetable oscillator, filter and effects. Minus the Lapsus Os providing some modulation and the Squid sequencing, the SSP is doing all the lifting.

A post shared by Without Form (@cntrlr_) on Mar 11, 2020 at 8:00pm PDT

View this post on Instagram

🎧 for the ambience. A little refinement to the wavetable patch from earlier. I added some tribal bass drum low end from the physical modeling membrane in the SSP. I also added a granular module with a vocal loop. There’s delay, reverb, SVF, bit crusher all inside the SSP helping to shape the tones with some external modulation as well.

A post shared by Without Form (@cntrlr_) on Mar 7, 2020 at 11:19am PST

View this post on Instagram

Same patch as last time except I’m using drum loops in the wavetable. SSP Power 💪🏽 get these drum loops in Re:Purpose, my new sound collection. Totally free, no strings attached. Download link in bio

A post shared by Without Form (@cntrlr_) on Mar 7, 2020 at 3:59am PST

View this post on Instagram

Dark, downtempo, minimal, chill, quick whip up. All sounds are from my newest sound collection, Re:Purpose which you can download free via the Bandcamp link in my bio. You can see the samples used in this clip. Download the collection and repurpose the samples how you see fit. On another note, I make an effort each day to spend time making music in some way. Even if I can only spare 20-30 minutes, I make some raw sounds to chop and edit later, patch up a few modules, turn on a hardware box etc. Music is therapeutic 🙏🏽.

A post shared by Without Form (@cntrlr_) on Mar 6, 2020 at 6:39pm PST

View this post on Instagram

Early morning patch with the SSP. The wavetable oscillator will accept any wav file (no external formatting needed) as a sound source so here I’m using a soundscape from my new sound collection Re:Purpose (free download link in bio) . I’m modulating the X and Y axis of the wavetable and the cutoff of the filter with external LFOs which gives it that almost wah pedal effect. Fun times to start the day off.

A post shared by Without Form (@cntrlr_) on Mar 7, 2020 at 3:16am PST

View this post on Instagram

I whipped up a little something using samples from Re:Purpose, my newest sound collection you can download free via the Bandcamp link in my bio. Recorded into a Go Mixer and into my iPhone. No eq, compression or sexy stuff.

A post shared by Without Form (@cntrlr_) on Mar 3, 2020 at 7:31pm PST

View this post on Instagram

Here’s quick jam I put together using 5 samples from Re:Purpose, one of which is a free running loop. Download Re:Purpose for free, link in bio. Get over 170 sounds for your craft.

A post shared by Without Form (@cntrlr_) on Mar 1, 2020 at 5:29pm PST

View this post on Instagram

My brain was melting from editing kick drum and bass samples so I ended the evening with some nightmare granular. The SSP is receiving external modulation on two granular modules with one output into Mimeophon and the other into the Black Spring Reverb. The Nebulae V2 is playing one of 2 string samples I’m modulating by hand. No, those aren’t kids vocals, those are violins. The SSP is just that damn good.

A post shared by Without Form (@cntrlr_) on Feb 25, 2020 at 7:23pm PST

View this post on Instagram

🎧 recommended 🎧Someone in the Percussa forum made a patch replicating the @divkidvideo Ochd with 8 LFOs. I’ve never used the real thing but I can see why it’s so popular now. 2 regular samples and 2 granular samples, tons of modulation (obviously) delay and Catalyst to morph between scenes.

A post shared by Without Form (@cntrlr_) on Feb 18, 2020 at 6:55pm PST

View this post on Instagram

🎧 make it mo betta 🎧..Testing some new sounds from my upcoming sample pack. The SSP is looping the “basspheres” samples, Nebulae V2 is playing the vocal sample into a Mimeophon while catalyst modulates parameters on both modules which ended up making it sound like a lot more was going on.

A post shared by Without Form (@cntrlr_) on Feb 17, 2020 at 4:27pm PST

View this post on Instagram

In this patch I’ve got Xaoc Devices Jena sequencing two samples I. The Assimil8or while Squid is playing the synth chords from the Percussa SSP. The samples from the Assimil8or are going into an Overseer filter. The synth signal is split with one channel going into the Viol Ruina filter and the other going straight into the mixer so when I sweep the filter down it sounds like 2 synths instead of one. The synth voice is a stock patch included with the SSP called 4Voice which is a 4 voice wavetable synth. Still experimenting, learning and slowly tying things together.

A post shared by Without Form (@cntrlr_) on Feb 16, 2020 at 10:19am PST

View this post on Instagram

A little acid style patch I started on the SSP with 1 saw tooth LFO, 1 envelope and 1 state variable filter. It’s sequenced by 1 SSP sequencer and patched into a Torcido I start using about half way through the video. The delay is from my L12 mixer. I’ll come back to this and maybe add a second LFO to thicken up the sound or maybe a wavetable oscillator. Fun times.

A post shared by Without Form (@cntrlr_) on Feb 15, 2020 at 10:31am PST

View this post on Instagram

Having a run with the PMM (physical modeling membrane) and had no clue it can get that filthy. There’s no distortion, saturation on the PMM, just some delay.

A post shared by Without Form (@cntrlr_) on Feb 14, 2020 at 3:04pm PST

View this post on Instagram

A little refinement to yesterday’s patch. I switched out the samples, made a new sequence and added a saw tooth LFO to the sine wave LFO, fed that into an envelope then into the SVF and made a little synth voice with an attitude problem. 😡

A post shared by Without Form (@cntrlr_) on Feb 13, 2020 at 7:23pm PST

View this post on Instagram

I started this patch before work this morning with a sampler and midi modules. Tonight I added the bass synth, filters and LFOs then let the OP-Z sequence it all. This module is so damn deep 💪🏽

A post shared by Without Form (@cntrlr_) on Feb 12, 2020 at 8:04pm PST

View this post on Instagram

🎧 highly recommended. I don’t normally use loops but when I do they’re constructed from my own samples. These are 2 “lofi” loops I was testing out that I ended up liking more when I lowered the frequency. @percussacom #SSP patch with 1 sample player, 1 Step sequencer and 1 out module. @wmdevices Overseer on filter duties.

A post shared by Without Form (@cntrlr_) on Feb 9, 2020 at 5:58pm PST

View this post on Instagram

I started this patch yesterday with 5 sounds from my next sample pack a couple sequencers and LFOs. Today I added a wavetable oscillator and effects. I really dig the way the filter creates that little bubbly atmosphere as it winds down. The sequencers aren’t synced so the timing is off but I like the movement in the sounds. There’s so many things I like about this module. It isn’t great at any one thing and I don’t think it’s supposed to be. What it does is offer you plenty of tools to experiment and create in ways you wouldn’t normally do. It’s quirky yet highly capable and rewarding. So far so great.

A post shared by Without Form (@cntrlr_) on Feb 6, 2020 at 7:36pm PST

View this post on Instagram

🎧 for full effect. I edited some samples after work then put them in the SSP to experiment with and this came out. I’m just messing around with 1 of three LFOs in this patch. Madness 👌🏽.

A post shared by Without Form (@cntrlr_) on Feb 3, 2020 at 7:03pm PST

View this post on Instagram

🎧 (for the chill vibes) My first patch I put together on the Percussa SSP. It’s a simple patch using 2 samples, 1 Step Sequencer, 2 LFOs, 1 Reverb and an output module. This module is actually quite simple to program. I’m looking forward to adding to this patch and watching it grow. Shoutout to @matthsmatthsmatths for making an incredibly detailed series of YouTube videos for this bad boy. They’ve been beyond helpful getting things going quickly.

A post shared by Without Form (@cntrlr_) on Jan 31, 2020 at 6:47pm PST

View this post on Instagram

🎧🎧 The Percussa SSP will load any wav file and slice it up for use in the Wavetable Oscillator. This is a sample of an acoustic guitar solo. I ran the LFO up because I’m like a child when it comes to sound and music. It’s a perpetual “I wonder...” 🤔

A post shared by Without Form (@cntrlr_) on Jan 30, 2020 at 6:35pm PST

View this post on Instagram

🎧👌🏽My first run in with the Percussa SSP. I didn’t have much time to experiment but I dumped a few samples on the sd card and checked out the granular patch which is dope so far. Also, my Arturia Keystep was straight plug and play. No drivers, no set up or anything. That was nice 👍🏽

A post shared by Without Form (@cntrlr_) on Jan 28, 2020 at 8:04pm PST

Visit the Percussa video gallery for older SSP videos.

Percussa SSP Specifications

Size	60HP 35mm behind panel
Inputs/Outputs	16 in / 8 out via high quality AKM converters 32 bit @ 48kHz, 96kHz, 192kHz sample rate all I/O DC coupled, -5V to +5V Low-noise power supplies and op-amp stages, featuring 0.1% resistors
USB support	Flash drives and MIDI controllers w/ MPE support + USB audio streaming
CPU power	quad-core ARM cortex A17 @ 1.8GHz
Onboard storage	2 GB RAM + 16GB Flash
Encoders and keys	4 encoders + 16 soft keys
Display	1600x480 pixel IPS display, full colour
USB Connectivity	2x USB Host + 1x USB device port
SD card slot	Yes, delivered with Sandisk Extreme Card
Comes with patches and sounds	Yes
Path editing	Full patching on SSP using 2D patching grid
Patch, Preset and File storage	Limited by size of SD card or USB flash drive
VST support	Develop/load your own VST plugins (compiled for Linux/ARM)
Multichannel recording	Record 16 inputs and/or 8 outputs to disk (flash)
Power	850 ma @ +12v and 250 ma @ -12v consumption standard 16-pin eurorack power connector

Frequently asked questions

Why is the Percussa SSP more powerful compared to other modules?

The Percussa SSP module offers the processing power of roughly 10 digital eurorack modules:

Common processors in Eurorack modules are the single core Cortex M4 and M7 processors, which at their highest clock frequencies of around 200MHz stay below 500 DMIPS. Some eurorack modules have started using more advanced processors, for example the single core Cortex A8 at 1GHz, which offers around 2,000 DMIPS of processing power.

In contrast, the quad-core ARM cortex A17 platform used in the Percussa SSP provides over 20,000 DMIPS of processing power, with its 4 cores running at 1.8GHz.

How many synth modules can I run on the Percussa SSP in parallel?

The SSP features 8 outputs and 16 inputs all at 192khz/32bit, and supports running 16 or more software DSP modules in parallel on multiple cores (until the CPU is fully occupied).

What polyphony does the SSP offer?

This depends on how many modules are active. If you have 8 modules then you can do 8 voices.

Can I record sound directly on the SSP?

Yes, there is a sampling (recording) module in the software which you can use to sample any signal and record it to disk (SD card) as a WAV file. You can then load that file into the wavetable oscillator, granular or sampler modules so you can layer them, etc.
